Application settings

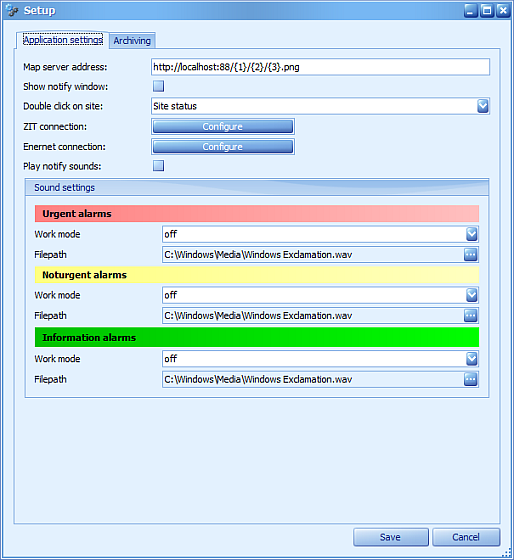

The window of adjusting enables modification of multiple parameters of the application. The user may modify the following parameters of the application in here, such as:

setup

•	Address of maps server

In case of application of off-line networks (public servers of maps), it is necessary to configure access to local server (description of the installation is found in Technical-Operational Documentation I-207-676).

In case of local servers the address slightly differs from the public one, i.e. does not include "{0}" in the beginning of the domain. In example it may be of the following type:

"http://192.168.1.99:88/{1}/{2}/{3}.png" provided it was installed on the computer of 192.168.1.99 address and site of the map was set at port 88.

•	Switch on / off the window of notifications about alarms

•	Switch on / off sound notifications

•	Configure the connection with ZIT

•	Configure the connection with Enernet

•

Configure settings of sounds regarding urgent, non-urgent and information alarms. Herein it is possible to modify operation mode and location to the sound files. In case of occurrence of alarm whose operation mode was set as continuous one it is possible to mute it by means of an icon

situated in top left corner of WinCN2’s main window.
