Map

Top  Previous  Next





Window of the map is added to the working window by means of the "Map" button in the "Monitoring" tab.



new_map

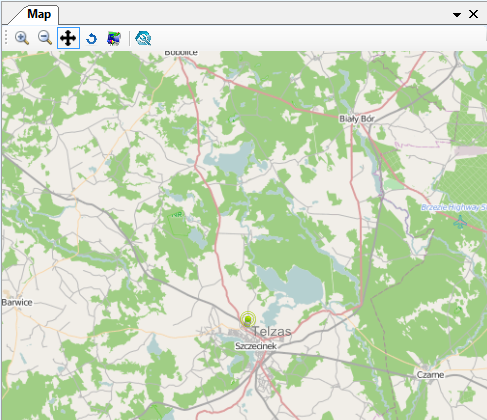

The „Map” window is meant for representation of sites in a shape of graphics of the status and a label with name and value. Size of the map’s window can be discretionally modified, both vertically and horizontally. The program remembers situation and size of the window and restores them during the restart.

In the top part of the window there is a toolbar enabling execution of the control commands.

synop_zoom_in - zooming in the synoptic board

synop_zoom_out - zooming out the synoptic board

synop_move - dragging the synoptic board
map_refresh - venting of the map – updating information on the sites and their statuses

synop_edit - switches edition mode of the map on / off – dragging the sites, etc.
kryteria - criteria - enables filtering the sites depending on their status (i.e. hide sites without alarm)












Right clicking will cause displaying the menu:


new_map_menu



Show in GoogleMaps / Show in Zumi – opens window of the Internet browser; adequate map with marked point is started in this window

Zoom in / Zoom out – zooms the map in and out

Add site to the map – calls window where it is possible to select the site from the list and enter label which is to be displayed above its symbol in the map.

Edition of the label – enables modification of the site’s label in the map

Remove site out of the map – removes the site’s label out of the map, so as it is not displayed anymore. It can be added again later on.

Poll controllers – send a command to poll the controllers of the particular site to the system.
Display status of the site – displays the site’s status window.
